23 Transparency

23.1 Overview

Normally, when you paint something using any of TikZ’s commands (this includes stroking, filling, shading, patterns, and images), the newly painted objects totally obscure whatever was painted earlier in the same area.

You can change this behavior by using something that can be thought of as “(semi)transparent colors”. Such colors do not completely obscure the background, rather they blend the background with the new color. At first sight, using such semitransparent colors might seem quite straightforward, but the math going on in the background is quite involved and the correct handling of transparency fills some 64 pages in the PDF specification.

In the present section, we start with the different ways of specifying “how transparent” newly drawn objects should be. The simplest way is to just specify a percentage like “60% transparent”. A much more general way is to use something that I call a fading, also known as a soft mask or a mask.

At the end of the section we address the problem of creating so-called transparency groups. This problem arises when you paint over a position several times with a semitransparent color. Sometimes you want the effect to accumulate, sometimes you do not.

Note: Transparency (or Opacity, as it may be called as well) is best supported by the pdf driver. The svg driver also has some support. The PostScript file format does not know about transparency. In dvips-generated PostScript files, transparency of graphic objects is defined through special commands that need further processing to become visible in the pdf output. For this, a recent version of Ghostscript, preferably 9.52 or newer, is required and its command line utility ps2pdf must be called with option -dALLOWPSTRANSPARENCY. Older versions may need option -dNOSAFER instead, but some advanced features, such as transparency groups and fadings, may not work at all. Printers and other programs will typically ignore opacity settings in PostScript files.

23.2 Specifying a Uniform Opacity

Specifying a stroke and/or fill opacity is quite easy using the following options.

  • /tikz/draw opacity=value(no default)

  • This option sets “how transparent” lines should be. A value of 1 means “fully opaque” or “not transparent at all”, a value of 0 means “fully transparent” or “invisible”. A value of 0.5 yields lines that are semitransparent.

    Note that when you use PostScript as your output format, this option works only with recent versions of Ghostscript.

    (-tikz- diagram)


    \begin{tikzpicture}[line width=1ex]
    \draw (0,0) -- (3,1);
    \filldraw [fill=yellow!80!black,draw opacity=0.5] (1,0) rectangle (2,1);
    \end{tikzpicture}

Note that the draw opacity options only sets the opacity of drawn lines. The opacity of fillings is set using the option fill opacity (documented in Section 15.5.3. The option opacity sets both at the same time.

Note the following effect: If you set up a certain opacity for stroking or filling and you stroke or fill the same area twice, the effect accumulates:

(-tikz- diagram)


\begin{tikzpicture}[fill opacity=0.5]
\fill[red] (0,0) circle (1);
\fill[red] (1,0) circle (1);
\end{tikzpicture}

Often, this is exactly what you intend, but not always. You can use transparency groups, see the end of this section, to change this.

23.3 Blend Modes

A blend mode specifies how colors mix when you paint on a canvas. Normally, if you paint a red box on a green circle, the red color will completely replace the green circle. However, in some situations you might also wish the red color to somehow “mix” or “blend” with the green circle. We already saw that, using transparency, we can draw something without completely obscuring the background. Blending is a similar operation, only here we mix colors in more complicated ways.

Note: Blending is a rather “advanced” feature of pdf. Most renderers, let alone printers, will have trouble rendering blending correctly.

  • /tikz/blend mode=mode(no default)

  • Sets the current blend mode to mode. Here mode must be one of the modes listed below. More details on these modes can also be found in Section 7.2.4 of the pdf Specification, version 1.7.

    In the following example, the blend mode is only used and set inside a transparency group (see also Section 23.5). This is because most renderers (viewing programs) have trouble rendering blending correctly otherwise. For instance, at the time of writing, the versions of Adobe’s Reader and Apple’s Preview render the following drawing very differently, if the transparency group is not used in the following example.

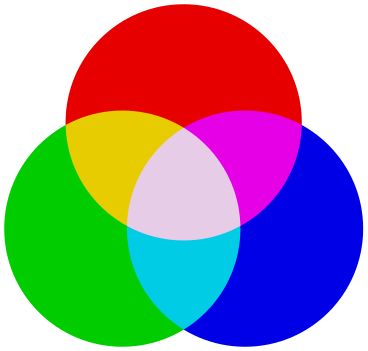

    (-tikz- diagram)


    \tikz {
    \begin{scope}[transparency group]
    \begin{scope}[blend mode=screen]
    \fill[red!90!black] ( 90:.6) circle (1);
    \fill[green!80!black] (210:.6) circle (1);
    \fill[blue!90!black] (330:.6) circle (1);
    \end{scope}
    \end{scope}
    }

    Because of the trouble with rendering blending correctly outside transparency groups, there is a special key that establishes a transparency group and sets a blend mode simultaneously:

    • /tikz/blend group=mode(no default)

    • This key can only be used with a scope (like transparency group). It will cause the current scope to become a transparency group and, inside this group, the blend mode will be set to mode.

      (-tikz- diagram)


      \tikz [blend group=screen] {
      \fill[red!90!black] ( 90:.6) circle (1);
      \fill[green!80!black] (210:.6) circle (1);
      \fill[blue!90!black] (330:.6) circle (1);
      }

    Here is an overview of the effects of the different available blend modes. In the examples, we always have three circles drawn on top of each other (as in the example code earlier): We start with a triple of pure red, green, and blue. Below it, we have a triple of light versions of these three colors (red!50, green!50, and blue!50). Next comes the triple yellow, cyan, and magenta; again with a triple of light versions below it. The large example consists of three balls (produced using ball color) having the colors red, green, and blue, are drawn on top of each other just like the circles.

    .
    Example Mode Explanations quoted from Table 7.2 of the pdf Specification, Version 1.7
    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) normal

    When painting a pixel with a some color (called the “source color”), the background color (called the “backdrop”) is completely ignored.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) multiply

    Multiplies the backdrop and source color values. The result color is always at least as dark as either of the two constituent colors. Multiplying any color with black produces black; multiplying with white leaves the original color unchanged. Painting successive overlapping objects with a color other than black or white produces progressively darker colors.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) screen

    Multiplies the complements of the backdrop and source color values, then complements the result. The result color is always at least as light as either of the two constituent colors. Screening any color with white produces white; screening with black leaves the original color unchanged. The effect is similar to projecting multiple photographic slides simultaneously onto a single screen.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) overlay

    Multiplies or screens the colors, depending on the backdrop color value. Source colors overlay the backdrop while preserving its highlights and shadows. The backdrop color is not replaced but is mixed with the source color to reflect the lightness or darkness of the backdrop.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) darken

    Selects the darker of the backdrop and source colors. The backdrop is replaced with the source where the source is darker; otherwise, it is left unchanged.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) lighten

    Selects the lighter of the backdrop and source colors. The backdrop is replaced with the source where the source is lighter; otherwise, it is left unchanged.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) color dodge

    Brightens the backdrop color to reflect the source color. Painting with black produces no changes.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) color burn

    Darkens the backdrop color to reflect the source color. Painting with white produces no change.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) hard light

    Multiplies or screens the colors, depending on the source color value. The effect is similar to shining a harsh spotlight on the backdrop.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) soft light

    Darkens or lightens the colors, depending on the source color value. The effect is similar to shining a diffused spotlight on the backdrop.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) difference

    Subtracts the darker of the two constituent colors from the lighter color. Painting with white inverts the backdrop color; painting with black produces no change.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) exclusion

    Produces an effect similar to that of the Difference mode but lower in contrast. Painting with white inverts the backdrop color; painting with black produces no change.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) hue

    Creates a color with the hue of the source color and the saturation and luminosity of the backdrop color.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) saturation

    Creates a color with the saturation of the source color and the hue and luminosity of the backdrop color. Painting with this mode in an area of the backdrop that is a pure gray (no saturation) produces no change.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) color

    Creates a color with the hue and saturation of the source color and the luminosity of the backdrop color. This preserves the gray levels of the backdrop and is useful for coloring monochrome images or tinting color images.

    (-tikz- diagram) (-tikz- diagram) (-tikz- diagram) luminosity

    Creates a color with the luminosity of the source color and the hue and saturation of the backdrop color. This produces an inverse effect to that of the Color mode.

23.4 Fadings

For complicated graphics, uniform transparency settings are not always sufficient. Suppose, for instance, that while you paint a picture, you want the transparency to vary smoothly from completely opaque to completely transparent. This is a “shading-like” transparency. For such a form of transparency I will use the term fading (as a noun). They are also known as soft masks, opacity masks, masks, or soft clips.

23.4.1 Creating Fadings

How do we specify a fading? This is a bit of an art since the underlying mechanism is quite powerful, but a bit difficult to use.

Let us start with a bit of terminology. A fading specifies for each point of an area the transparency of that point. This transparency can by any number between 0 and 1. A fading picture is a normal graphic that, in a way to be described in a moment, determines the transparency of points inside the fading. Each fading has an underlying fading picture.

The fading picture is a normal graphic drawn using any of the normal graphic drawing commands. A fading and its fading picture are related as follows: Given any point of the fading, the transparency of this point is determined by the luminosity of the fading picture at the same position. The luminosity of a point determines “how bright” the point is. The brighter the point in the fading picture, the more opaque is the point in the fading. In particular, a white point of the fading picture is completely opaque in the fading and a black point of the fading picture is completely transparent in the fading. (The background of the fading picture is always transparent in the fading as if the background were black.)

It is rather counter-intuitive that a white pixel of the fading picture will be opaque in the fading and a black pixel will be transparent. For this reason, TikZ defines a color called transparent that is the same as black. The nice thing about this definition is that the color transparent!percentage in the fading picture yields a pixel that is percentage percent transparent in the fading.

Turning a fading picture into a normal picture is achieved using the following commands, which are only defined in the library, namely the library fadings. So, to use them, you have to say \usetikzlibrary{fadings} first.

  • \tikzfadingfrompicture[options]

  • environment contents

  • \endtikzfadingfrompicture

  • The plain version of the environment.

  • \starttikzfadingfrompicture[options]

  • environment contents

  • \stoptikzfadingfrompicture

  • The Cont version of the environment.

23.4.2 Fading a Path

A fading specifies for each pixel of a certain area how transparent this pixel will be. The following options are used to install such a fading for the current scope or path.

  • /tikz/path fading=name (default scope’s setting)

  • This option tells TikZ that the current path should be faded with the fading name. If no name is given, the name set for the whole scope is used. Similarly to options like draw or fill, this option is reset for each path, so you have to add it to each path that should be faded. You can also specify none as name, in which case fading for the path will be switched off in case it has been switched on by previous options or styles.

    (image)

    \usetikzlibrary {fadings,patterns}
    \begin{tikzpicture}[path fading=south]
    % Checker board
    \fill [black!20] (0,0) rectangle (4,3);
    \pattern [pattern=checkerboard,pattern color=black!30]
    (0,0) rectangle (4,3);

    \fill [color=blue] (0.5,1.5) rectangle +(1,1);
    \fill [color=blue,path fading=north] (2.5,1.5) rectangle +(1,1);

    \fill [color=red,path fading] (1,0.75) ellipse (.75 and .5);
    \fill [color=red] (3,0.75) ellipse (.75 and .5);
    \end{tikzpicture}
    • /tikz/fit fading=boolean (default true, initially true)

    • When set to true, the fading is shifted and resized (in exactly the same way as a shading) so that it covers the current path. When set to false, the fading is only shifted so that it is centered on the path’s center, but it is not resized. This can be useful for special-purpose fadings, for instance when you use a fading to “punch out” something.

    • /tikz/fading angle=degree(no default)

    • A shortcut for fading transform={rotate=degree}.

    Note that you can “fade just about anything”. In particular, you can fade a shading.

    (-tikz- diagram)

    \usetikzlibrary {fadings,patterns}
    \begin{tikzpicture}
    % Checker board
    \fill [black!20] (0,0) rectangle (4,4);
    \path [pattern=checkerboard,pattern color=black!30] (0,0) rectangle (4,4);

    \shade [ball color=blue,path fading=south] (2,2) circle (1.8);
    \end{tikzpicture}

    The fade inside of the following example is more transparent in the middle than on the outside.

    (image)

    \usetikzlibrary {fadings,patterns}
    \tikzfading[name=fade inside,
    inner color=transparent!80,
    outer color=transparent!30]
    \begin{tikzpicture}
    % Checker board
    \fill [black!20] (0,0) rectangle (4,4);
    \path [pattern=checkerboard,pattern color=black!30] (0,0) rectangle (4,4);

    \shade [ball color=red] (3,3) circle (0.8);
    \shade [ball color=white,path fading=fade inside] (2,2) circle (1.8);
    \end{tikzpicture}

    Note that adding the path fading option to a node fades the (background) path, not the text itself. To fade the text, you need to use a scope fading (see below).

Note that using fadings in conjunction with patterns can create visually rather pleasing effects:

(image)

\usetikzlibrary {fadings,patterns,shadows}
\tikzfading[name=middle,
top color=transparent!50,
bottom color=transparent!50,
middle color=transparent!20]
\begin{tikzpicture}
\node [circle,circular drop shadow,
pattern=horizontal lines dark blue,
path fading=south,
minimum size=3.6cm] {};
\pattern [path fading=north,
pattern=horizontal lines dark gray]
(0,0) circle (1.8cm);
\pattern [path fading=middle,
pattern=crosshatch dots light steel blue]
(0,0) circle (1.8cm);
\end{tikzpicture}
23.4.3 Fading a Scope

In addition to fading individual paths, you may also wish to “fade a scope”, that is, you may wish to install a fading that is used globally to specify the transparency for all objects drawn inside a scope. This effect can also be thought of as a “soft clip” and it works in a similar way: You add the scope fading option to a path in a scope – typically the first one – and then all subsequent drawings in the scope are faded. You will use a transparency group in conjunction, see the end of this section.

  • /tikz/scope fading=fading(no default)

  • In principle, this key works in exactly the same way as the path fading key. The only difference is, that the effect of the fading will persist after the current path till the end of the scope. Thus, the fading is applied to all subsequent drawings in the current scope, not just to the current path. In this regard, the option works very much like the clip option. (Note, however, that, unlike the clip option, fadings to not accumulate unless a transparency group is used.)

    The keys fit fading and fading transform have the same effect as for path fading. Also that, just as for path fading, providing the scope fading option with a {scope} only sets the name of the fading to be used. You have to explicitly provide the scope fading with a path to actually install a fading.

    (-tikz- diagram)

    \usetikzlibrary {fadings,patterns}
    \begin{tikzpicture}
    \fill [black!20] (-2,-2) rectangle (2,2);
    \pattern [pattern=checkerboard,pattern color=black!30]
    (-2,-2) rectangle (2,2);

    % The bounding box of the shading:
    \draw [red] (-50bp,-50bp) rectangle (50bp,50bp);

    \path [scope fading=south,fit fading=false] (0,0);
    % fading is centered at its natural size

    \fill[red] ( 90:1) circle (1);
    \fill[green] (210:1) circle (1);
    \fill[blue] (330:1) circle (1);
    \end{tikzpicture}

    In the following example we resize the fading to the size of the whole picture:

    (-tikz- diagram)

    \usetikzlibrary {fadings,patterns}
    \begin{tikzpicture}
    \fill [black!20] (-2,-2) rectangle (2,2);
    \pattern [pattern=checkerboard,pattern color=black!30]
    (-2,-2) rectangle (2,2);

    \path [scope fading=south] (-2,-2) rectangle (2,2);

    \fill[red] ( 90:1) circle (1);
    \fill[green] (210:1) circle (1);
    \fill[blue] (330:1) circle (1);
    \end{tikzpicture}

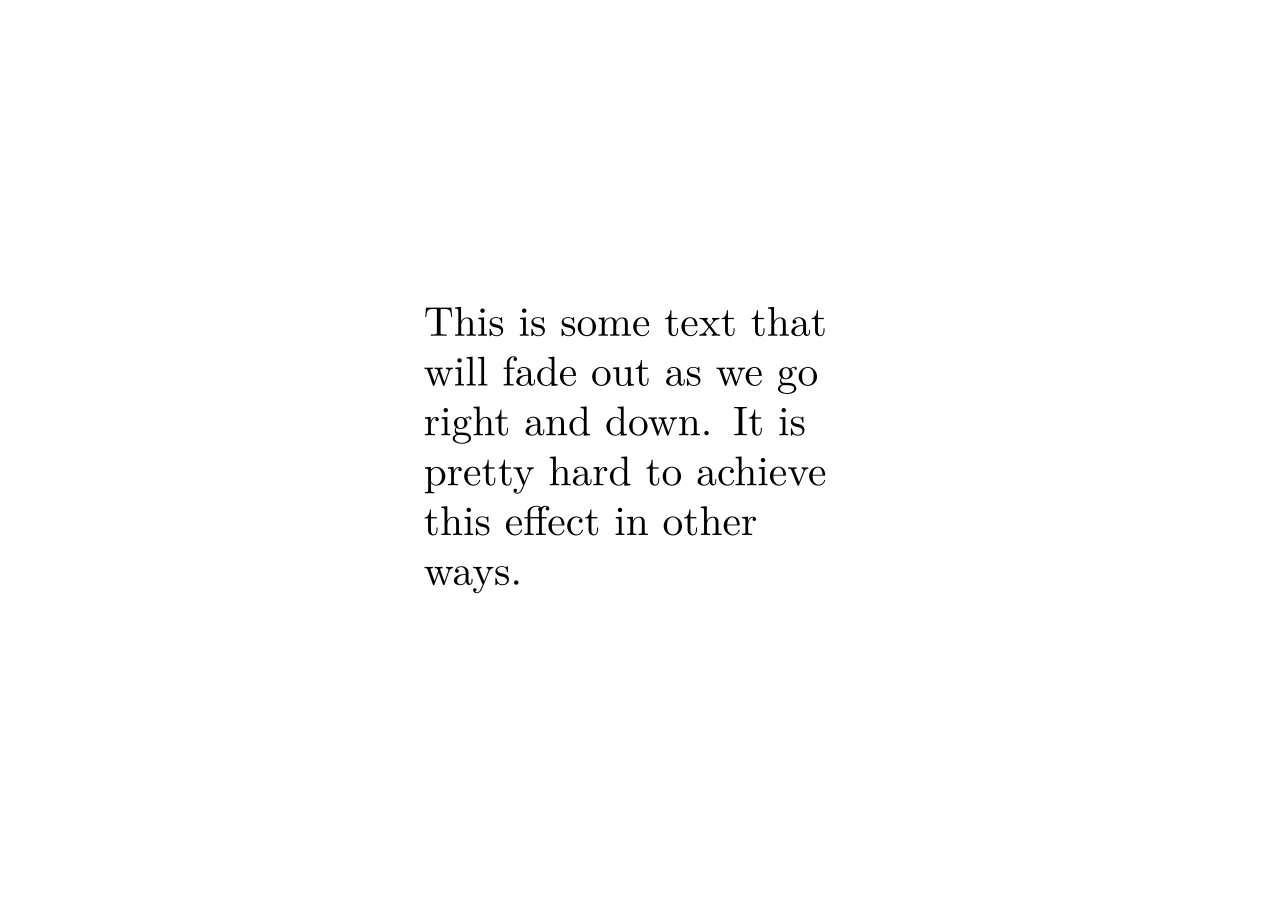

    Scope fadings are also needed if you wish to fade a node.

    (-tikz- diagram)

    \usetikzlibrary {fadings}
    \tikz \node [scope fading=south,fading angle=45,text width=3.5cm]
    {
    This is some text that will fade out as we go right
    and down. It is pretty hard to achieve this effect in
    other ways.
    };
23.5 Transparency Groups

Consider the following cross and sign. They “look wrong” because we can see how they were constructed, while this is not really part of the desired effect.

(-tikz- diagram)


\begin{tikzpicture}[opacity=.5]
\draw [line width=5mm] (0,0) -- (2,2);
\draw [line width=5mm] (2,0) -- (0,2);
\end{tikzpicture}

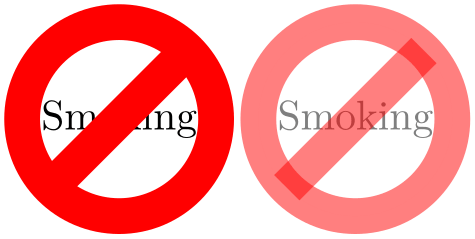

(-tikz- diagram)

\usetikzlibrary {shapes.symbols}
\begin{tikzpicture}
\node at (0,0) [forbidden sign,line width=2ex,draw=red,fill=white] {Smoking};

\node [opacity=.5]
at (2,0) [forbidden sign,line width=2ex,draw=red,fill=white] {Smoking};
\end{tikzpicture}

Transparency groups are used to render them correctly:

(-tikz- diagram)


\begin{tikzpicture}[opacity=.5]
\begin{scope}[transparency group]
\draw [line width=5mm] (0,0) -- (2,2);
\draw [line width=5mm] (2,0) -- (0,2);
\end{scope}
\end{tikzpicture}

(-tikz- diagram)

\usetikzlibrary {shapes.symbols}
\begin{tikzpicture}
\node at (0,0) [forbidden sign,line width=2ex,draw=red,fill=white] {Smoking};

\begin{scope}[opacity=.5,transparency group]
\node at (2,0) [forbidden sign,line width=2ex,draw=red,fill=white]
{Smoking};
\end{scope}
\end{tikzpicture}
  • /tikz/transparency group=[options](no default)

  • This option can be given to a scope. It will have the following effect: The scope’s contents is stroked / filled “ignoring any outside transparency”. This means, all previous transparency settings are ignored (you can still set transparency inside the group, but never mind). For instance, in the forbidden sign example, the whole sign is first painted (conceptually) like the image on the left hand side. Note that some pixels of the sign are painted multiple times (up to three times), but only the last color “wins”.

    Then, when the scope is finished, it is painted as a whole. The fill transparency settings are now applied to the resulting picture. For instance, the pixel that has been painted three times is just red at the end, so this red color will be blended with whatever is “behind” the group on the page.

    (-tikz- diagram)

    \usetikzlibrary {patterns,shapes.symbols}
    \begin{tikzpicture}
    \pattern[pattern=checkerboard,pattern color=black!15](-1,-1) rectangle (3,1);
    \node at (0,0) [forbidden sign,line width=2ex,draw=red,fill=white] {Smoking};

    \begin{scope}[transparency group,opacity=.5]
    \node at (2,0) [forbidden sign,line width=2ex,draw=red,fill=white]
    {Smoking};
    \end{scope}
    \end{tikzpicture}

    Note that in the example, the opacity=.5 is not active inside the transparency group: The group is only established at beginning of the scope and all options given to the {scope} environment are set before the group is established. To change the opacity inside the group, you need to open another scope inside it or use the opacity key with a command inside the group:

    (-tikz- diagram)

    \usetikzlibrary {patterns,shapes.symbols}
    \begin{tikzpicture}
    \pattern[pattern=checkerboard,pattern color=black!15](-1,-1) rectangle (3,1);
    \node at (0,0) [forbidden sign,line width=2ex,draw=red,fill=white] {Smoking};

    \begin{scope}[transparency group,opacity=.5]
    \node (s) at (2,0) [forbidden sign,line width=2ex,draw=red,fill=white]
    {Smoking};

    \draw [opacity=.5, line width=2ex, blue] (1.2,0) -- (2.8,0);
    \end{scope}
    \end{tikzpicture}

    The options are a list of comma-separated options:

    • knockout When this option is given inside the options, the group becomes a so-called knockout group. This means, essentially, that inside the group everything is painted as if the “opacity” of a line or area were just another color channel. In particular, if you paint a pixel with opacity \(0\) inside a knockout group, this pixel becomes perfectly transparent immediately. In contrast, painting a pixel with something of opacity \(0\) normally has no effect.

      Not all renderers, let alone printers, will support this. At the time of writing, Apple’s Preview will not show the following correctly (you should see the text TikZ in the middle):

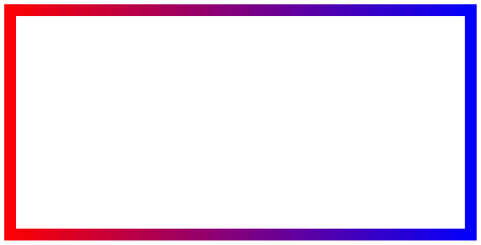

      (-tikz- diagram)


      \begin{tikzpicture}
      \shade [left color=red,right color=blue] (-2,-1) rectangle (2,1);
      \begin{scope}[transparency group=knockout]
      \fill [white] (-1.9,-.9) rectangle (1.9,.9);
      \node [opacity=0,
      font=\fontencoding{T1}\fontfamily{ptm}\fontsize{45}{45}\bfseries]
      {Ti\emph{k}Z};
      \end{scope}
      \end{tikzpicture}

      In the example, we first draw a large shading and then, inside the transparency group “overwrite” most of this shading by a big white rectangle. The interesting part is the text of the node, which has opacity 0. Normally, this would mean that nothing is shown. However, in a knockout group, we “paint” the text with an “opacity zero” color. The effect is that part of the totally opaque white rectangle gets overwritten by a perfectly transparent area (namely exactly the area taken up by the pixels of the text). When this whole knockout group is then placed on top of the shading, the shading will “shine through” at the knocked-out pixels.

    • isolated=false A group can be isolated or not. By default, they are isolated, since this is typically what you want. For details on what isolated groups are, exactly, see Section 7.3.4 of the pdf Specification, version 1.7.

    Note that when a transparency group is created, TikZ must correctly determine the size of the material inside the group. Usually, this is no problem, but when you use things like overlay or transform canvas, trouble may result. In this case, please consult Section 115 on how to sidestep this problem in such cases.
